Quick Start

This walkthrough takes you from an empty board to a merged, agent-built pull request. It assumes you (or someone on your team) has a Cat-Factory instance deployed. If not, deploy one first: see Cloudflare or Node.js.

Prerequisites

Before you start, make sure you have:

  • A running Cat-Factory instance (backend + frontend).
  • A GitHub App connected for authentication and repository operations.
  • At least one LLM provider configured: your own ANTHROPIC_API_KEY / OPENAI_API_KEY, or the free-tier Cloudflare Workers AI default.
  • A GitHub repository you want agents to work in (or let Cat-Factory bootstrap a new one).

Deploying it yourself?

The fastest path is the Cloudflare deployment. Apply the database migrations, deploy the worker, then build and publish the Nuxt frontend. Full steps are in Deploy to Cloudflare.

1. Sign in and open a workspace

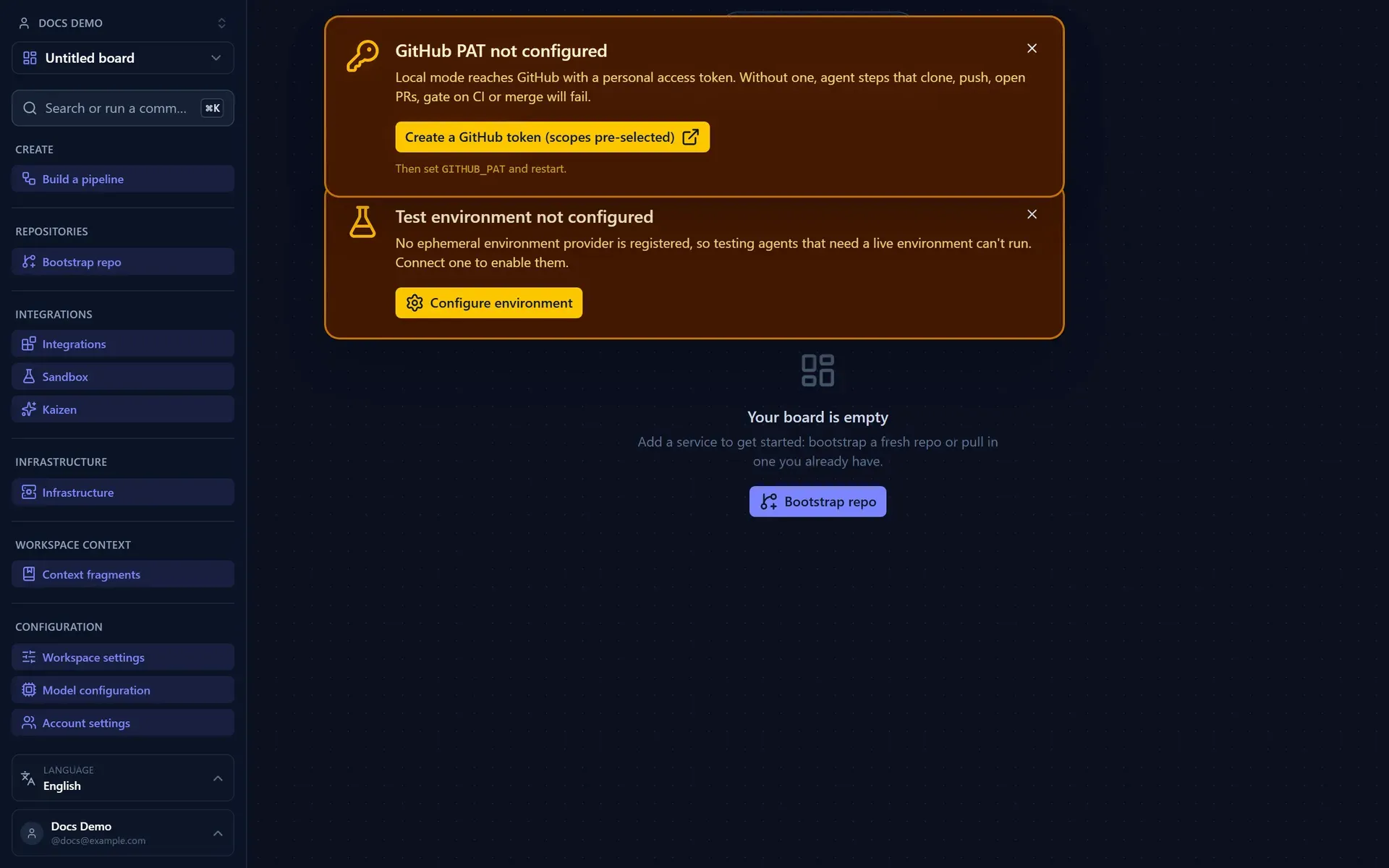

Open your Cat-Factory frontend and sign in with GitHub. You land in a workspace, the container for your boards, repositories, and budget. Create a new workspace or join an existing one if your organization already has them.

2. Create your board structure

On the canvas:

  1. Add a service frame for the system you're building.
  2. Add modules (subframes) inside it for major areas.
  3. Add tasks (leaves) for concrete pieces of work.
  4. Draw dependency edges where order matters.

Link the service to a repository, or use repository bootstrap to scaffold a new one from a reference architecture. See Designing Your Board.

3. Attach requirements

Give a task enough context for an agent to succeed:

  • Write a clear description, or
  • Use the context picker in the Add-task popup to search, paste, or link an issue or document (Jira, GitHub Issues, Confluence, Notion, GitHub repo docs) and import it.

Then trigger the reviewer agent to surface gaps and risky assumptions, and answer its questions. See Requirements and Issue & Document Sources.

4. Run an agent pipeline

Select a task and start a run:

  1. Choose a pipeline (e.g. Architect → Coder → Reviewer → Tester → Acceptance).
  2. Confirm the spend estimate against your budget.
  3. Watch the run stream live, and answer any decision prompts the agents raise.

Each agent runs on its kind's default model, set in Configuration → Default models.

See Running Pipelines.

5. Review and merge the pull request

The coding agent clones the repo into an ephemeral container and implements the task, committing to a deterministic branch; Cat-Factory then pushes it, opens a pull request, and drives CI. The Tester, Conflicts Gate, CI Gate, and Merger steps validate and prepare the PR.

You review the PR like any other. When you merge, the block flips to Done and the board updates in real time. See Pull Requests.

The full loop

Design board  →  Attach requirements  →  Run pipeline  →  Review PR  →  Merge  →  Block Done
     ▲                                                                                  │
     └──────────────────────────  iterate on the next block  ◀──────────────────────────┘

That's the whole cycle. From here, dig into the Using Cat-Factory guides for each stage, or set up Budgets before you turn agents loose at scale.
