Designing Your Board

The board is where you describe what you're building. It is also the work queue, so there is no separate backlog to keep in sync. This page covers building and organizing that structure.

The canvas

The board is a pannable, zoomable canvas rendered with Vue Flow. As you zoom, the canvas uses semantic level-of-detail rendering: high-level frames stay legible when zoomed out, and detail appears as you zoom in. Service frames are resizable. Drag a frame's border to set its size, or leave it to auto-size from its contents.

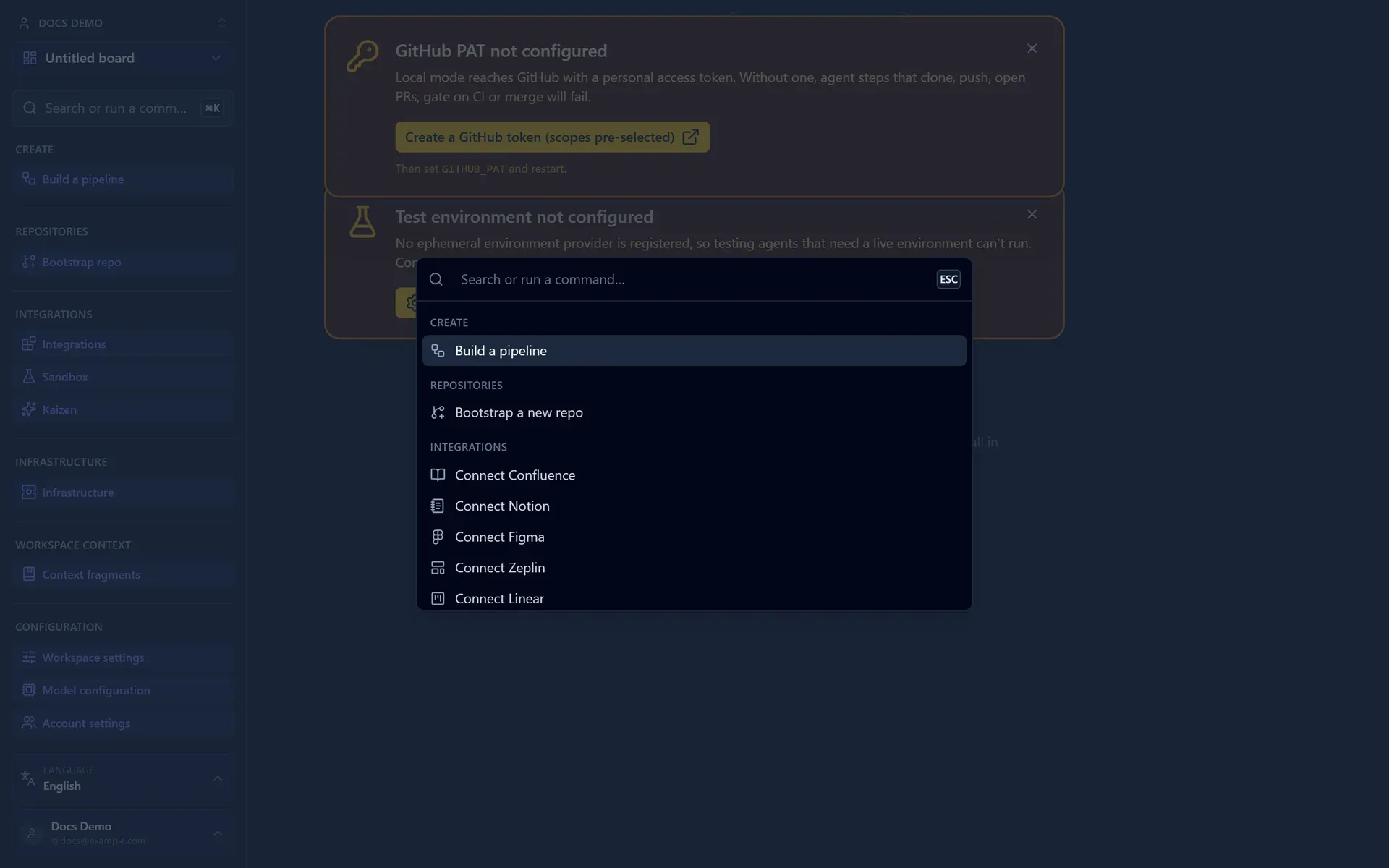

The left rail is a navbar grouped into Create, Repositories, Integrations, Workspace context (the prompt-fragment library), and Configuration. You don't drag blocks or pipelines from a palette. Instead, a command bar (open with ⌘K / Ctrl-K) is the launcher for creating blocks and building pipelines.

The board toolbar adds an Add service menu to mount a shared service from your org, and a service frame offers Add task and Add recurring pipeline.

Configuration holds two workspace-wide settings panels:

  • Default models - pick a default model per agent kind (see Assigning models).
  • Merge thresholds - manage the merge-threshold presets the Merger step uses to decide auto-merge vs. raising a review.

The three levels

Build top-down using the block hierarchy:

  1. Frames (services) - one per deployable service, usually linked to a repository.
  2. Subframes (modules) - major areas inside a service.
  3. Leaves (tasks) - concrete, agent-sized units of work.

Sizing tasks

A task should be something an agent can implement and land in a single pull request. If a leaf feels like it spans several PRs, split it into sibling leaves.

Adding and editing blocks

  • Create a block from the command bar (⌘K) or the per-frame Add task / Add module controls, at the level you need.
  • Edit its title, description, status, chosen pipeline, prompt fragments, and merge-policy preset in the inspector.
  • Reparent by dragging a block onto a new parent, which is useful as your design evolves. Moving a task into another service's frame re-homes it onto that service.
  • Delete a block to remove it. Deletion cascades to its children, so deleting a service removes its modules and tasks too.

Dependency edges

Draw dependency edges between blocks to capture ordering and relationships. Edges are a first-class part of the design, not visual garnish: they communicate intent to your team and inform how work is sequenced.

Linking a repository

A service frame typically maps to one Git repository. You have three options:

  • Link an existing repository the GitHub App can access.
  • Bootstrap a new repository from a reference architecture (Cat-Factory creates the repo and force-pushes the template, then the service frame materializes on the board).
  • Reconcile an existing repo's structure onto the board with service blueprints.

All of this is covered in Repositories.

Assigning models

Set a default model per agent kind under Configuration → Default models — for example a strong model for the Architect and a cheaper one for the Tester. Where a kind has no default, the deployment's routing for that kind applies, then its global default. Use stronger models on architecturally significant kinds and cheaper ones on routine steps to manage spend. See Choosing models.

A suggested workflow

  1. Lay out frames for each service.
  2. Fill in modules for the major areas.
  3. Break modules into tasks sized for a single PR.
  4. Connect dependency edges where order matters.
  5. Link or bootstrap repositories on each service.
  6. Move to Requirements to make each task agent-ready.

Next: make your tasks unambiguous with Requirements.
